Desk 5000/Move 5000 eConduit Configuration

Hardware ordering requirements:

  1. eConduit application is requested at time of purchase, it will be added by Chase prior to deployment.
  2. Device must also have the semi integrated (TSI) application loaded

Chase Semi Integrated Steps (support for semi-integrated capabilities are handled by Chase)

  1. Click Admin
  2. Click #9 Misc Options
  3. Click #1 for semi integrated
  4. Enable Semi Integrated to “on
  5. Communication type for Desk 5000 is Ethernet
      1. Port must be 5020
      2. Receipt options must be at Terminal

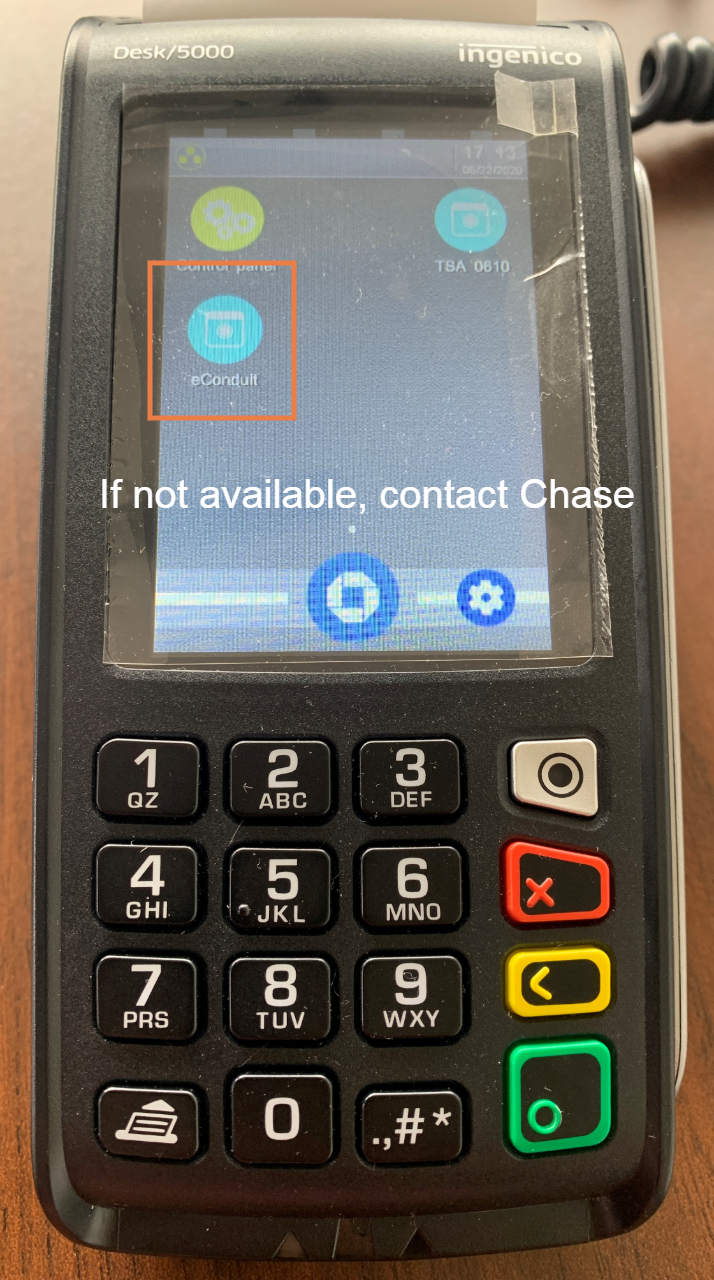

  1. Press Function Key (Upper most grey button with circle)
  2. Press Click eConduit icon
  3. Press Click “Cloud Server”
  4. Press “Start Cloud Server” – message will display
  5. Press Red key to revert back to previous screen
  6. Press Print Configuration
    1. (print out will provide Terminal ID used for pairing with Point of Sale software – example 03779804)
  7. Press Red button until back at main screen

Click Chase logo located at bottom center of screen (screen should show Welcome/Bonjour)


eConduit Portal

  1. Press Claim New Terminal
  2. Enter Terminal ID and press Register
  3. Will show “successful”, select “configure terminal”
  4. Invoice number needs to be set to “0”
